Description

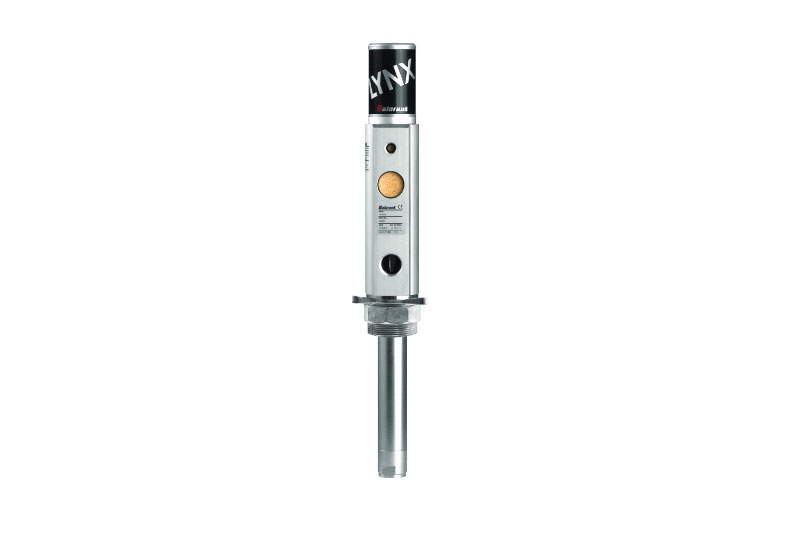

The LYNX® series pump is perfect for small volume users, for synthetics, and standard mineral oils. The 3:1 version is best for small tank packages, roll-around units for synthetic and mineral base drum applications.
Fluids
• Synthetic and mineral based lubricants
• Hydraulic fluid
• Transmission fluid
Applications
• Oil bar supply (pumping short distance)
• Roll-around synthetic or mineral oil packages
• Low volume dispensing in agricultural, in-plant, and maintenance shop applications
Pump Specifications
• Pump ratio 3:1
• Operating air pressure range 45 – 150 PSI (3 – 10 bar)
• Pump delivery with SAE 10W-30 oil, 68º F, at 150 PSI air pressure and free flow 6.6 gal/m (25 l/m)
• Air inlet 1/4″ NPT (F)
• Fluid outlet 3/4″ NPT (F)
• Fluid inlet 3/4″ NPT (F)
• Pump air piston diameter 1 1/4” (32 mm)
• Wetted materials Buna-N™, Steel, Brass, Aluminum, and Polyurethane
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use pressure relief valve kit 3120-086 for this pump.
Warning! Do not use any LYNX® series products with flammable fluids.
